Standard Type

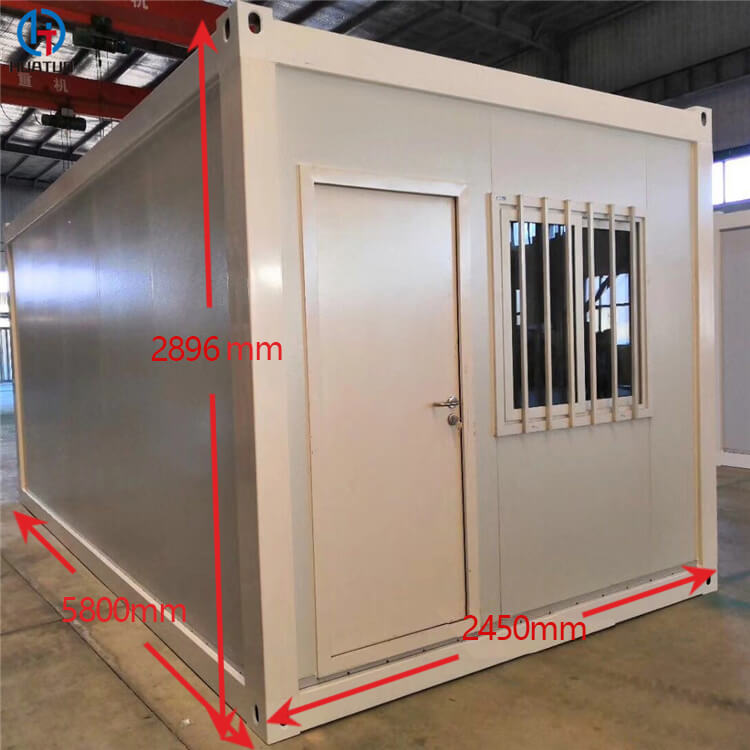

| SIZE:L5800*H2896*W2450mm | |||||
| No. | Component | Materials | |||
| 1 | Top frame | 2.5mm, purlin:C type steel 80*40*1.2mm,glass wool 50mm, PE film, color steel plate 0.45mm, sealing overall butyl tape waterproof | |||
| 2 | Bottom frame | 2.5mm, Bottom support-14PCS | |||
| 3 | Pillar | 160 * 160*2.5mm-4 pieces | |||
| 4 | Flashing parts | 50mm, U-type | |||
| 5 | Floor | 15mm, Cement plate-5PCS | |||
| 6 | Plastic flooring | 1.0mm, Floor adhesives required | |||
| 7 | Steel door | Double-sided color steel plate:0.4mm, doorframe 0.6mm, One lock, 925*1970 | |||
| 8 | Window | Single glass sliding window, 925*1200 | |||
| 9 | Wall panel | 0.3mm+50mm Rockwool+0.3mm, 50KG/m³ | |||
| 10 | Water pipe | PVC, ¢50mm | |||
| 11 | Ceiling tile | Type:831, 0.3mm colour steel sheet | |||
| 12 | Ceiling trimming | 40*40mm, 0.8mm | |||
| 13 | Internal corner of column | Colour steel sheet, including fixings | |||
| 14 | Skirting line | PVC, 5700*3PCS | |||
| 15 | Installation accessories | screw, drilling thread, bolt and sealant etc | |||
| 16 | Power distribution | Brand: Chint, Sheathed wire 6m2, 4m2, 2.5m2, 1.5m2 copper wire, three hole socket-1, five hole sockets-3, single open-1, long lights-2, advanced eight circuit distribution box-1, 32A leakage protector-1, 32A circuit breaker-1, industrial socket plus industrial socket box-1 | |||
